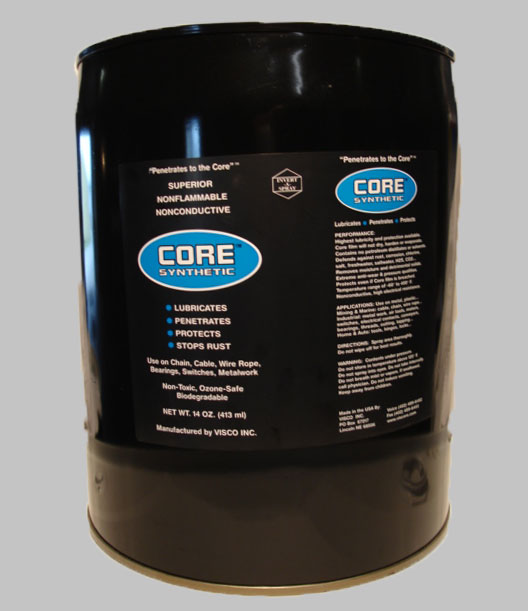

CORE Sprayable Rail Road Switch Plate Lubricant
Core Switch Plate Lubricant is available is 1, 5, and 55 gallon containers.
Core lubricant stays in place for a long time extending the application schedule
Made with extreme pressure and anti-wear additives for heavy duty service.
Inhibits corrosion. Resists weather conditions, acids, salt, steam, water washout.
Core lubricating film will not dry, harden or evaporate.
Core Lubricant is essentially non-conductive
Works in temperatures from -110◦F to 380◦F.
Essentially non-flammable, non-toxic and biodegradable.
Safer for workers than low flash point graphite products.
Core Switch Plate Lubricant is sprayable and very easy to apply.
USES: Switch plates, crossing gate gears, electrical connections, circuit controllers, couplers, sliding doors, slide plates, wire rope, chain, cable…
APPLICATION: Easily and quickly applied by brush or sprayer.
SAFETY: Core is a mild eye and skin irritant. Wear protective glasses and gloves. Do Not Ingest. If swallowed, call physician immediately.
See MSDS for all information regarding safety.
Core Switch Plate Lubricant Specifications
Appearance..........................................…….. Amber
Flash Point .............................................….. 390°F
Auto Ignition .............................................… 555°F
Pour Point .................................................... -80°F
Freezing Point ............................................. -110°F
API Gravity ...............................................… 24.8
Kinematic Viscosity at 40° C ....................… 20.04
Coefficient of Friction Mu Value .................. .23/.25
Four Ball Wear Test ................................…. 4mm+.02
Four Ball Weld ............................................. 220 Kg
Weld Point (ASTM266) ................................ 315 Kg
Rust Resistance (ASTM D-665) ................... Pass
Hydrochloric Acid Fumes (7 Day Exp) ......... No Metal Loss
Environmental Impact ................................... Biodegradable
Precipitation ..............................................…. Trace
Toxicity .......................................................… Non-Toxic
Copper Corrosion Test .................................. 1a
Dielectric Strength ......................................... 27
Load Wear Index ........................................... 32.93
